Reference Table with Dynamic Validation

From ADempiere
Jump to: navigation, search
This Wiki is read-only for reference purposes to avoid broken links.

This tutorial is started by Red1. If you like to comment for improvement, please do so here at Talk:Reference Table with Dynamic Validation.


  • How would you like a field in your window that has a pull down list containing values that are dynamic?
    • which is dependent on another table in the database?
    • which will select distinct values or group them into unique occurrences if they are not unique?
    • easily achieved without coding but some mouse-clicks to setup?
  • How would you like a field that has its pull down list populated with values controlled by the value of another field?
    • with no source-code change?
    • easily done with simple proto SQL phrases?
  • You have come to the right place as we shall show you exactly how quick and easy that is done here!

Case Study

  • We are doing this as a prototype for an E-ticketing system.
  • We are going to create a Reference to a Table in the database.
  • The Reference are created for the field ET_TripBegin (Origins) and ET_TripEnd (Destinations) from table ET_Booking. They will access the Table called ET_Vehicle that is a holder of available routes or schedule trips.


Table and Column Setting for Vehicle


  • The ET_TripBegin field Reference is set to Table instead of String. A new Reference 'Departures' is created. You can do that on the fly by right-clicking on it and select Zoom.

Reference Table Validation Setting for TripBegin Field


  • The table is selected here and the field chosen is the ET_Departure which becomes distinct origins during pull down.
  • You can see the result from the following screen.

Booking Window Result


  • It shows all the available origins that the user can choose from.
  • Now we shall do the same for the other field which concerns destinations or arrivals.

Table and Column Setting For Booking


  • This second field ET_TripEnd will refer the same table. Note that it has an extra duty under Dynamic Validation.

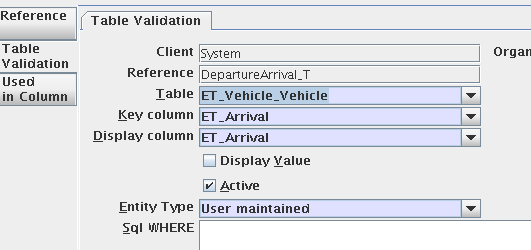

Reference Table Validation for TripEnd Field


  • The pull down will show all the arrivals. But we do not want all of them. We just want those that correspond to the origin.

Dynamic Validation SQL Code


  • Dynamic Validation allows for SQL injection, where we supply the WHERE clause.
  • Here we ask it to access the ET_Vehicle table for records similar to the origin by ensuring similar ET_Departure values.
  • @..@ traps the field value in play. We place it within single quotes '@..@' for SQL to take it as a string value.

Final Effect


  • We see that only destinations associated with the origin is displayed in the pull down. The selections are pushed to the upper row by a Callout as the pull downs will clear during Save.

Passing Values Via Rules

  • You can create a Rule script and assign it to the Callout so that it copies over the values to other fields and refresh:
